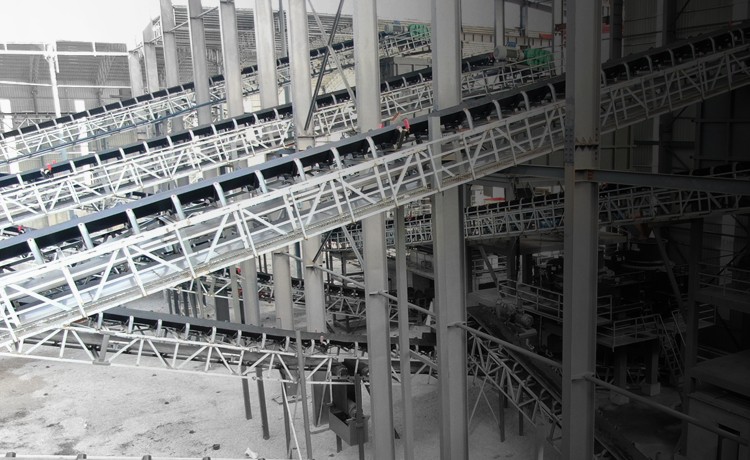

TD Series Belt Conveyor TD Series Belt Conveyor

TD Series Belt Conveyor

TD series belt conveyor is a kind of general conveying equipment, which is composed of single or multiple units to synthesize the conveying system. It is widely used in mining, metallurgy, coal and other departments to convey loose materials or finished articles. Applicable ambient temperature is - 10 ℃ to+40 ℃.

Contact Us e-mail

Advantages

  • Strong transportation capacity, long transportation distance, stable operation, reliable work, high productivity, easy to realize automation and centralized control;

  • The conveying range is wide. It can continuously convey wet, dry, powdery, blocky and finished articles, and can receive or discharge materials to multiple points;

  • Simple structure, easy maintenance, strong interchangeability and versatility of main parts.

Technical Specifications

Belt width
(mm)
Conveying length(m)
Power(kw)
Conveying speed
(m/s)
Conveying capacity
(t/h)
400 ≤10
3
12-15
3-4
15-30
4-7.5
1.25-2.0 30-60
500 ≤10
3
12-15
4-5.5
15-30
5.5-7.5
1.25-2.0 40-80
650 ≤10
4
12-15
7.5
15-30
7.5-11
1.25-2.0 80-120
800 ≤10
4
12-15
7.5
15-30
7.5-15
1.25-2.0 120-200
1000 ≤10
5.5
10-20
7.5-11
20-40
11-22
1.25-2.0 200-320
1200 ≤10
7.5
10-20
7.5-15
20-40
15-30
1.25-2.0 290-480
1400 ≤10
11
10-20
15-22
20-40
22-45
1.25-2.0 400-680
1600 ≤10
15
10-20
22-30
20-50
30-75
1.25-2.0 600-1080
1800 ≤10
18.5
10-20
30-45
20-50
45-110
1.0-2.0 800-1500
2000 ≤10
22
10-20
45-55
20-50
55-132
1.0-2.0 1000-2000
2400 ≤10
30
10-20
55-75
20-50
75-185
1.0-2.0 1500-3000
Belt width
(mm)
Converying speed
(m/s)
Concerying capacity
(t/h)
400 1.25-2.0 30-60
500 1.25-2.0 40-80
650 1.25-2.0 80-120
800 1.25-2.0 120-200
1000 1.25-2.0 200-320
1200 1.25-2.0 290-480
1400 1.25-2.0 400-680
1600 1.25-2.0 600-1080
1800 1.0-2.0 800-1500
2000 1.0-2.0 1000-2000
2400 1.0-2.0 1500-3000
