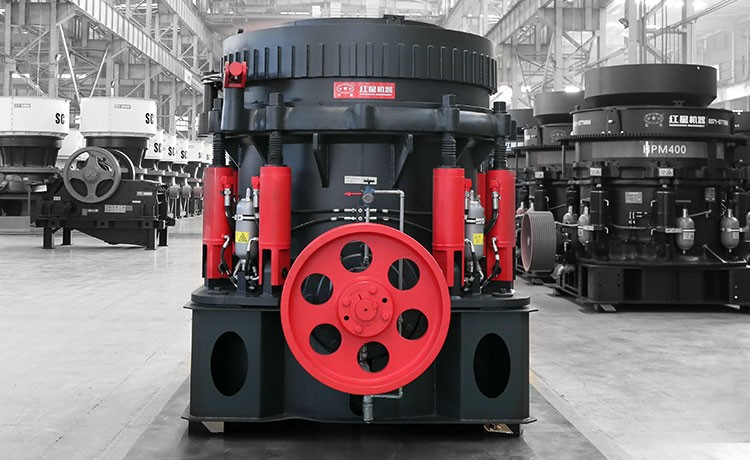

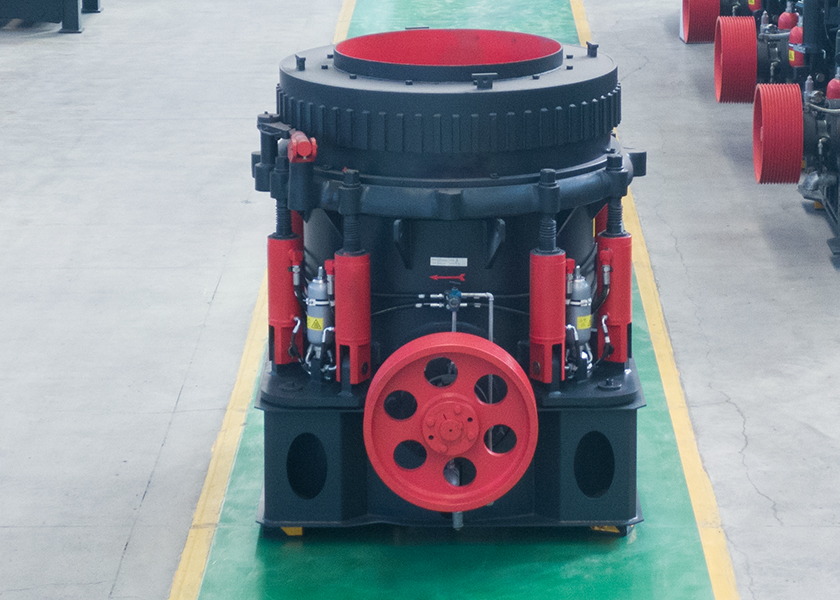

GYS Hydraulic Cone Crusher  GYS Hydraulic Cone Crusher

GYS Hydraulic Cone Crusher

GYS cone crusher is based on our company's combination of PSG cone crusher. It adopts advanced automatic control design concepts and inherits the characteristics of reliable structure and low failure rate of traditional PSG series cone crushers, which can reduce downtime and reduce workers. Labor intensity.

Contact Us e-mail

Advantages

  • Automatic control of overload protection and cleaning chamber function by using bumper

  • Fully automatic control system is easy for remote and side-by-side control.

  • Hydraulic lubrication oil station with small volume Electrical connection adopts aviation plug, no wiring required; Discharge opening is adjusted by hydraulic cylinder.

Technical Specifications

Model Cavities Broken cone big end diameter(mm) Feeding Size(mm) Max.feeding Size(mm) Adjusting Range of Discharge Opening(mm) Processing capacity(t/h) Power(kw)
GYS 300 C1 910 175 140 13-38 81-180 90
C2 102 80 9-22 60-180
F1 76 60 3-16 36-145
F2 41 30 3-13 36-130
GYS 400 C1 1300 241 190 19-51 207-400 200
C2 210 168 16-38 162-350
C3 137 110 13-31 126-310
F1 105 85 8-25 109-230
F2 89 70 6-16 82-230
F3 64 50 3-16 40-230
GYS 500 C1 1600 269 215 25-64 280-650 280
C2 241 190 22-51 258-450
C3 209 170 16-38 180-410
F1 133 105 10-25 162-355
F2 89 70 6-19 136-330
F3 70 55 5-13 90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Max.feeding Size(mm) Processing capacity(t/h)
GYS 300 140 81-180
80 60-180
60 36-145
30 36-130
GYS 400 190 207-400
168 162-350
110 126-310
85 109-230
70 82-230
50 40-230
GYS 500 215 280-650
190 258-450
170 180-410
105 162-355
70 136-330
55 90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
