HDX Series German Type Jaw Crusher  HDX Series German Type Jaw Crusher

HDX Series German Type Jaw Crusher

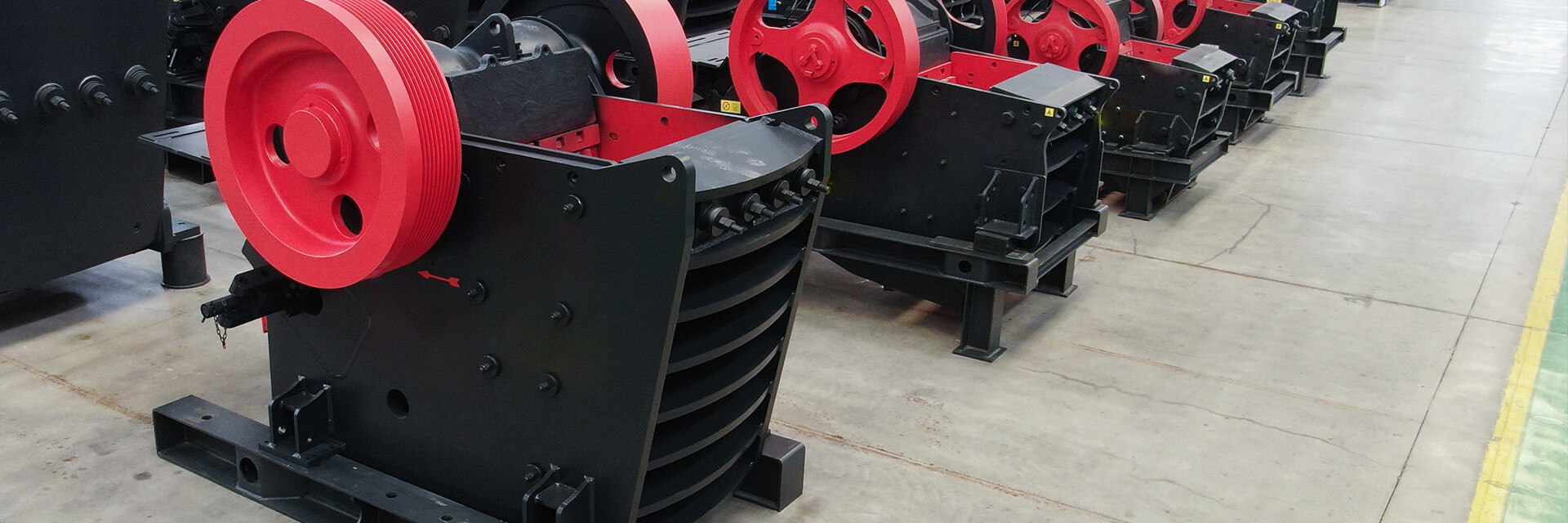

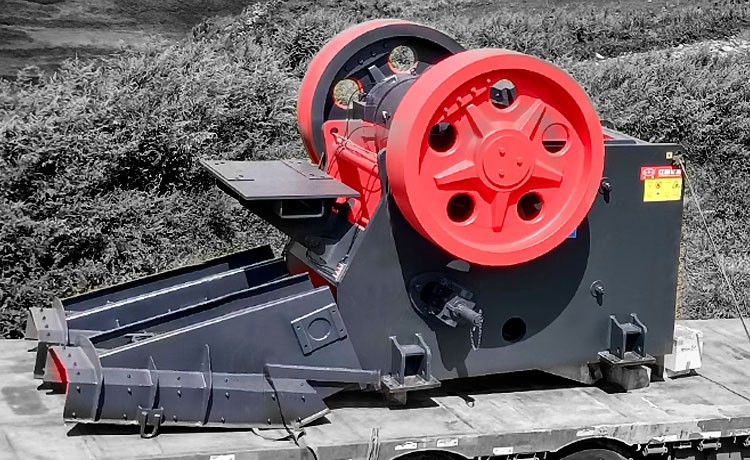

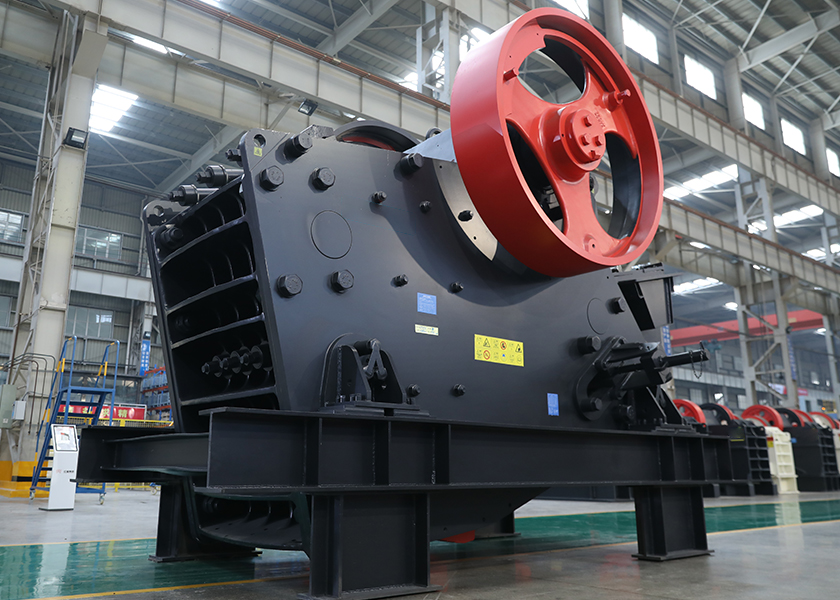

The HDX german type jaw crusher is an upgraded product based on the HD German type jaw crusher based on the combination of many customer sites and market needs. It saves space, easy to operate, and reduces the cost of infrastructure construction, installation, operation and maintenance.

Contact Us e-mail

Advantages

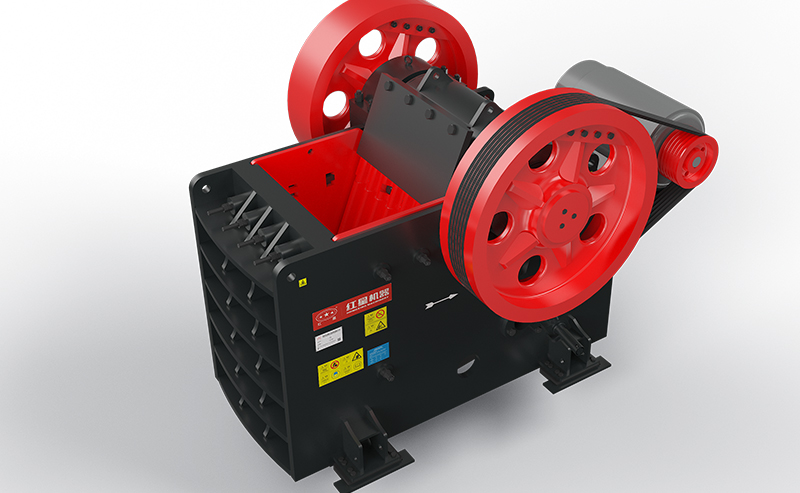

  • Integral motor frame

    The integral motor frame makes the installation easier;reduces the installation space;The crusher moves synchronously with the integral motor main shaft, which improves the load on the V-belt.

  • Steel toggle plate

    The steel toggle plate is light in weight, easy to replace, and bends when exceeded, avoiding damage to the conveyor belt when the traditional cast iron toggle plate breaks and falls.

  • Wedge adjustment

    There are two adjustment methods: mechanical and hydraulic.The discharge opening can be adjusted within a few minutes,which greatly reduces labor intensity and downtime; this system is especially effective to clean the cavity.

Completely new design

  •
	  Steel Plate Welding Frame

    Steel Plate Welding Frame

  •

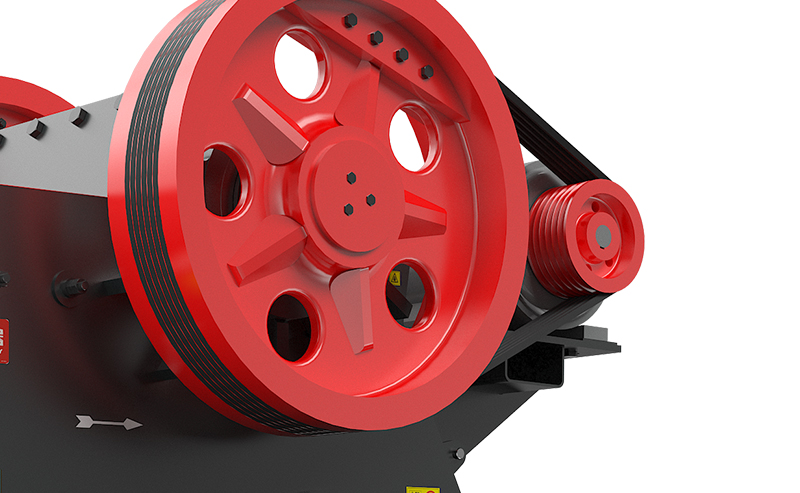

	  Integral Motor Bracket

    Integral Motor Bracket

Technical Specifications

Model Feeding opening size(mm) Maximum feeding size (mm) Adjustment range of discharge port(mm) Processing capacity(t/h) Power(kw) Dimensions L×W×H(mm)
HDX72(57) 720×460 425 45-100 50-120 6P 55 2450×2160×1615
HDX86(69) 860×580 500 50-150 60-280 8P 75 3005×2392×1780
HDX98(751) 980×680 630 75-175 110-410 8P 110 3372×2530×2145
HDX110(912) 1100×850 750 100-200 170-550 6P 132 3592×2670×2515
HDX125 1250×950 900 125-225 280-750 8P 160 4214×2810×2887

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding opening size(mm) Maximum feeding size (mm) Processing capacity(t/h)
HDX72(57) 720×460 425 50-120
HDX86(69) 860×580 500 60-280
HDX98(751) 980×680 630 110-410
HDX110(912) 1100×850 750 170-550
HDX125 1250×950 900 280-750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
