Hydraulic Roll Crusher

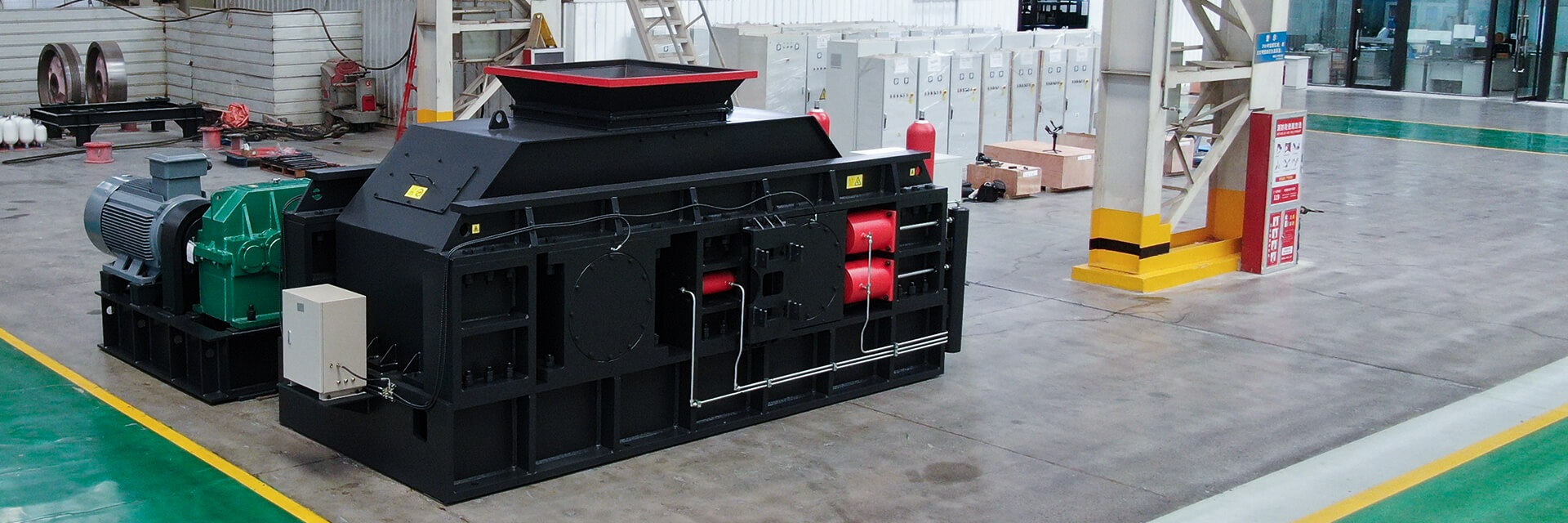

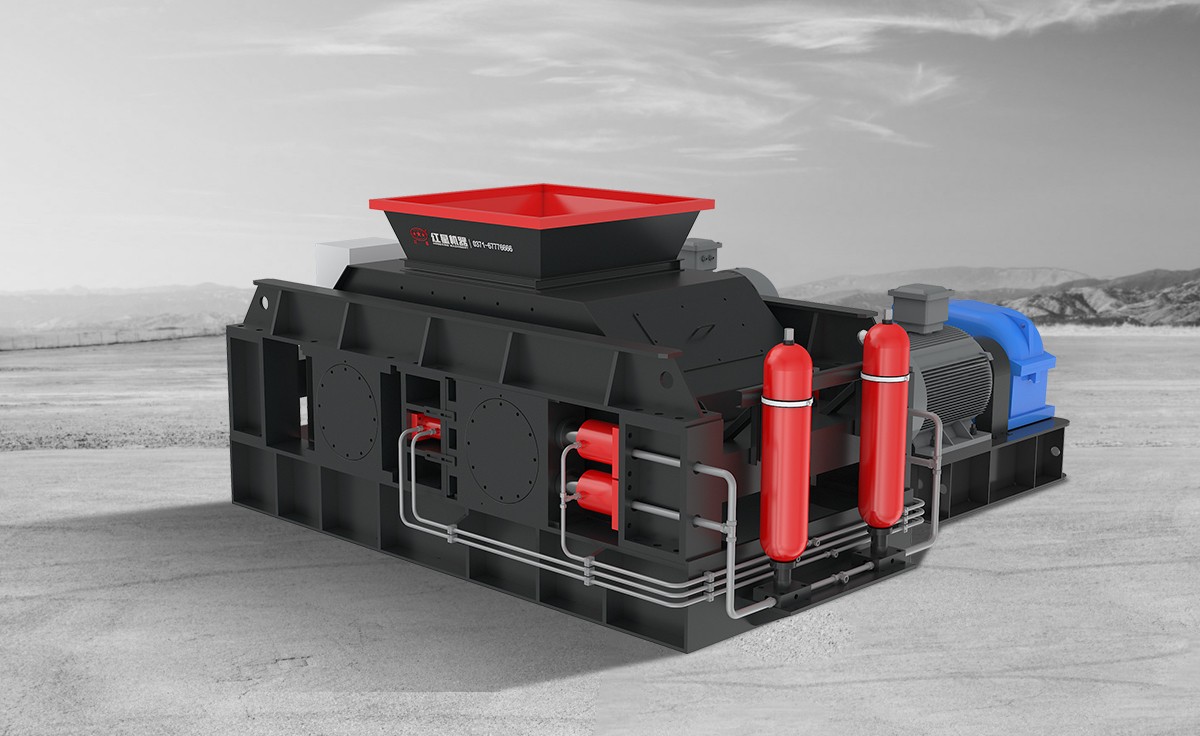

The hydraulic roller crusher is a new type of roller crusher that combines various advanced technologies. It has reasonable structure, advanced performance and powerful functions. Through excellent electromechanical and hydraulic integration design, the equipment can operate continuously, stably and reliably. In aggregate and grinding systems, it can generally increase the output by 30% - 40% and reduce the total energy consumption by 20% - 30%. It can finely crush materials of various hardness In mineral processing, chemical industry, refractory, stone processing, building materials and other industries.

Contact Us e-mail

Advantages

  • Heavy thickened roller skin is adopted, with advanced materials, reasonable structure, wear resistance and impact resistance. The service life of parts is greatly extended with automatic lubrication device;

  • The equipment is equipped with an automatic control system, which is compact in structure, stable in operation, efficient and energy-saving. Compared with other crushing systems with the same performance, it can significantly reduce investment and use costs, and has unparalleled advantages;

  • Keep the roller skin gap between 1-40mm stablely by hydraulic adjustment;

  • It is equipped with overload protection. When the unbreakable objects enter between the rollers, the rollers automatically give way and automatically recover to the set clearance.

Technical Specifications

Model Roller Diameter (mm) Roller Width (mm) Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h) Power(kw)
5mm 10mm 20mm
2PGY1008 ø 1000 800 ≤40 8-33 24-98 32-130 2×55
2PGY1210 ø 1200 1000 ≤60 12-50 37-148 49-197 2×90
2PGY1510 ø 1500 1000 ≤80 15-60 46-185 60-245 2×160
2PGY1810 ø 1800 1000 ≤100 18-75 55-220 73-295 2×250
2PGY2012 ø 2000 1200 ≤120 25-100 73-295 97-390 2×315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h)
5mm 10mm 20mm
2PGY1008 ≤40 8-33 24-98 32-130
2PGY1210 ≤60 12-50 37-148 49-197
2PGY1510 ≤80 15-60 46-185 60-245
2PGY1810 ≤100 18-75 55-220 73-295
2PGY2012 ≤120 25-100 73-295 97-390

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
