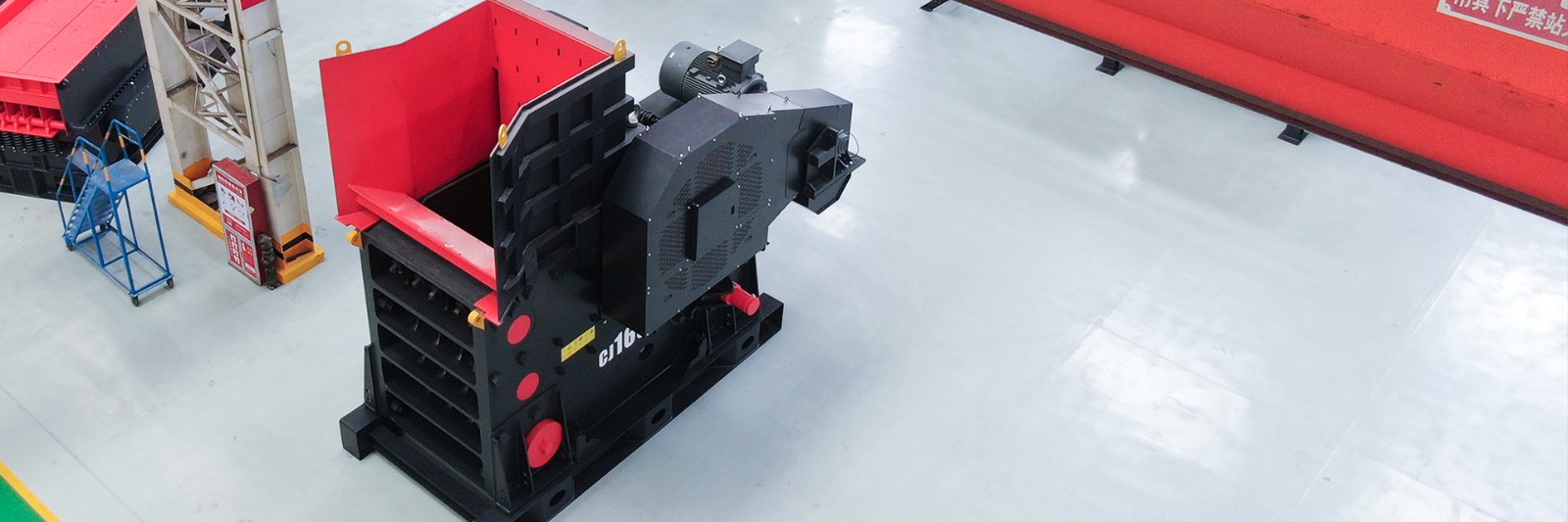

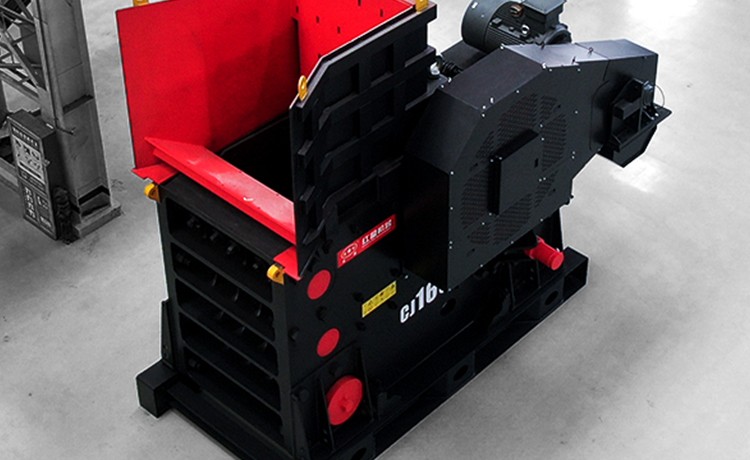

CJ Series European Type Jaw Crusher CJ Series European Type Jaw Crusher

CJ Series European Type Jaw Crusher

The CJ series jaw crusher is with excellent performance introduced by Hongxing Heavy Industry Machinery Co., Ltd. based on the needs of customers. Different from the traditional jaw crusher, there are significant improvements in the crusher's motion parameters, structural forms, and adjustment methods.

The CJ series jaw crusher commonly used for primary or secondary crushing in the mining material crushing. It has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. Particularly suitable for fixed crushing lines and mobile crushing plants.

Contact Us e-mail

Advantages

  • Excellent feeding ability -The deep V cavity allows the material into the crushing cavity without any obstruction, thus ensuring the best feeding ability.

  • Reliable equipment operation- Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.

  • High yield and big crushing ratio- Large crushing ratio and stable operation, which fully guarantees the high yield and high efficiency of the crushing operation.

Completely new design

  •

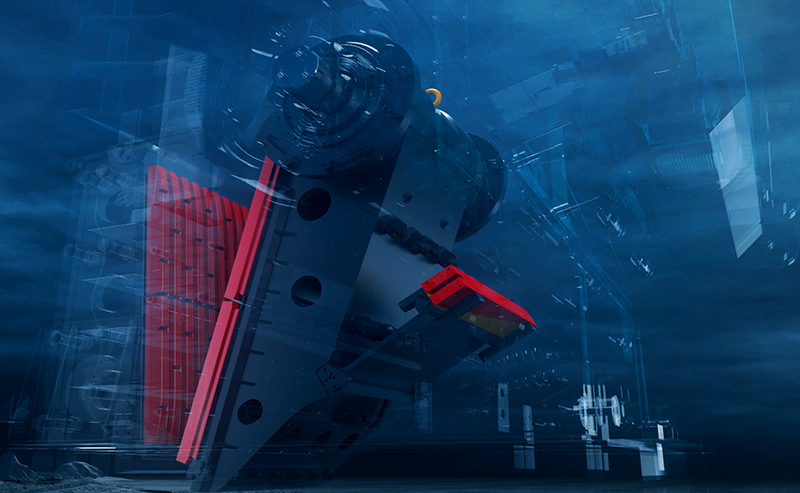

	Bolted frame

    The side plate of the frame, the front wall and the rear beam are connected by cylindrical pin positioning and high-strength bolts, which avoids the defects that the welding frame is easy to cause stress concentration;

  •

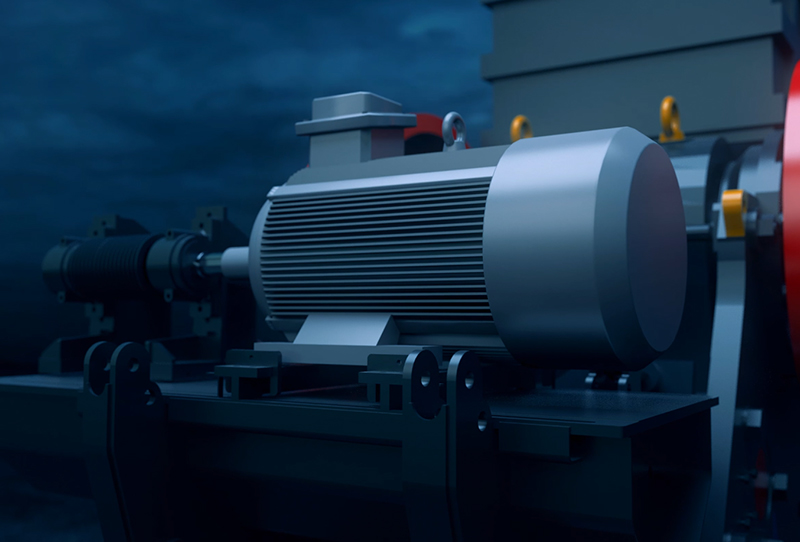

	Integral motor bracket

    The integral motor frame makes the installation more easier; reduces the installation space; Crusher and the integral motor bracket move synchronously, which improves the load on the V-belt.

Technical Specifications

Model Maximum Feeding size(mm) Feeding opening size L×W(mm) Adjustment range of discharge port(mm) Capacity(t/h) Power(KW) Dimensions L×W×H(mm)
CJ96 480 930×580 60-175 105-390 4P 90 2850×2270×1950
CJ106 560 1060×700 70-200 150-500 4P 110 3280×2580×2400
CJ120 700 1200×870 70-200 175-610 4P 160 3700×2790×2950
CJ125 760 1250×950 100-250 270-831 4P 160 4230×2780×2960
CJ150 960 1400×1200 125-250 340-880 4P 200 5030×3440×3970
CJ160 960 1600×1200 150-300 430-1145 4P 250 5780×3460×3580
CJ200 1200 2000×1500 175-300 630-1435 6P 400 6600×4030×4400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feeding size(mm) Capacity(t/h)
CJ96 480 105-390
CJ106 560 150-500
CJ120 700 175-610
CJ125 760 270-831
CJ150 960 340-880
CJ160 960 430-1145
CJ200 1200 630-1435

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
