HMF Series Motor Vibrating Feeder HMF Series Motor Vibrating Feeder

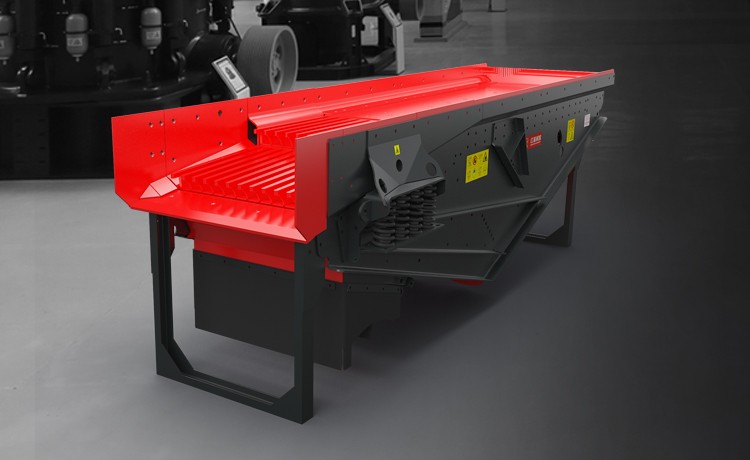

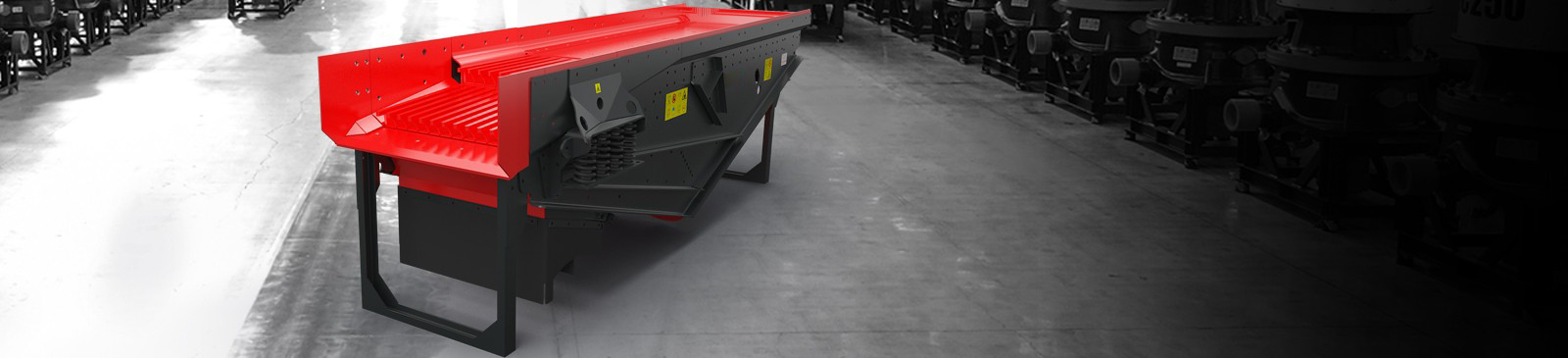

HMF Series Motor Vibrating Feeder

HMF series motor vibrating feeder is the special products launched by our company, which is suitable for feeding stone, building materials and metallurgical mines to small and medium-sized primary crushing equipment. It is compact in structure, strong in impact resistance, and uses a vibration motor as the vibration source. It is easy to maintain during use, with low failure rate, and is greatly convenient for on-site adjustment and production maintenance.

Contact Us e-mail

Advantages

  • Compact structure and beautiful appearance;

  • Vibration motor drive, stable performance, simple adjustment, long maintenance cycle;

  • Wear- resistant grate and finger like rod can be selected according to site materials to avoid blockage.

  • The lower part of the castor bar is equipped with a standard discharge port to directly collect the materials under the screen to the belt;

  • Screen mesh can be selected at the lower part of the castor bar to fine screen the waste materials and soil, so as to improve the utilization rate of raw materials

Completely new design

  •

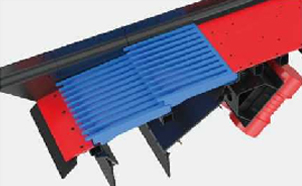

	  Targeted Grate Bar Selection

    Targeted Grate Bar Selection

  •

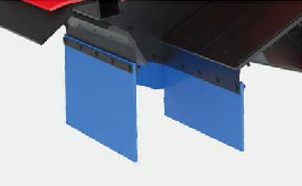

	  Discharge Port

    Discharge Port

  •

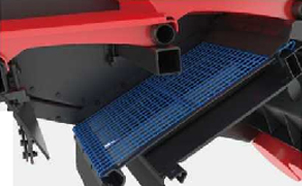

	 Screen

    Screen

Technical Specifications

Model W×L (mm) Length of the grate (mm) Max.Feeding size (mm) Max.Feeding capacity(t/h) Power
(kw)
HMF0832 800×3200 800×2 450 300 2×2.9
HMF0832S 800×3200 800×2 450 300 2×2.9
HMF1042 1000×4200 800×2 500 400 2×5.5
HMF1042S 1000×4200 800×2 500 400 2×5.5
HMF1148 1100×4800 800×2 700 500 2×7.5
HMF1148S 1100×4800 800×2 700 500 2×7.5

Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.

Model Max.Feeding size (mm) Max.Feeding capacity (t/h)
HMF0832 450 300
HMF0832S 450 300
HMF1042 500 400
HMF1042S 500 400
HMF1148 700 500
HMF1148S 700 500

Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.
