HPM Multi-cylinder Hydraulic Cone Crusher

HPM series multi-cylinder cone crusher is a new type of cone crusher which is suitable for crushing high hard materials and has strict requirements on the grain shape of products. This series is complete, matching the new generation of intelligent control system and Internet control system.

Contact Us e-mail

Advantages

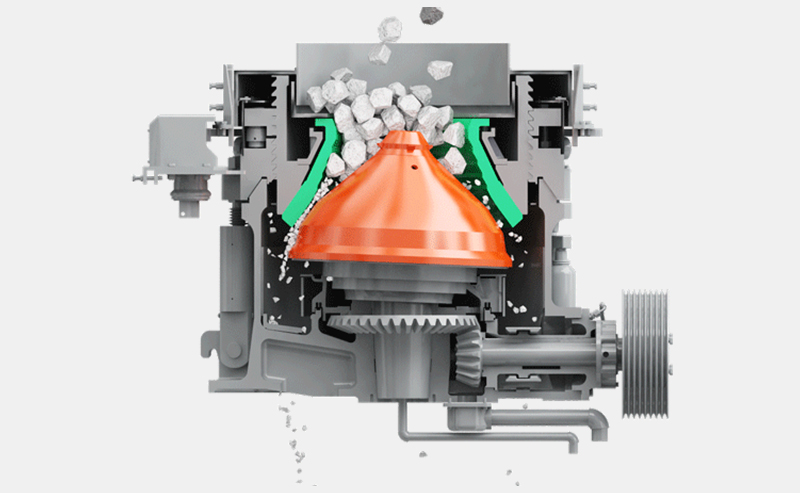

  • Laminated crushing: Ensure the cube shape

  • Positive pressure dust proof system: Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution

  • No glue packing, easy to change: Replacing lining board is economical and time saving

  • Zero degree spiral bevel gear: High transmission efficiency, quiet, prevent burning sleeve

Completely new design

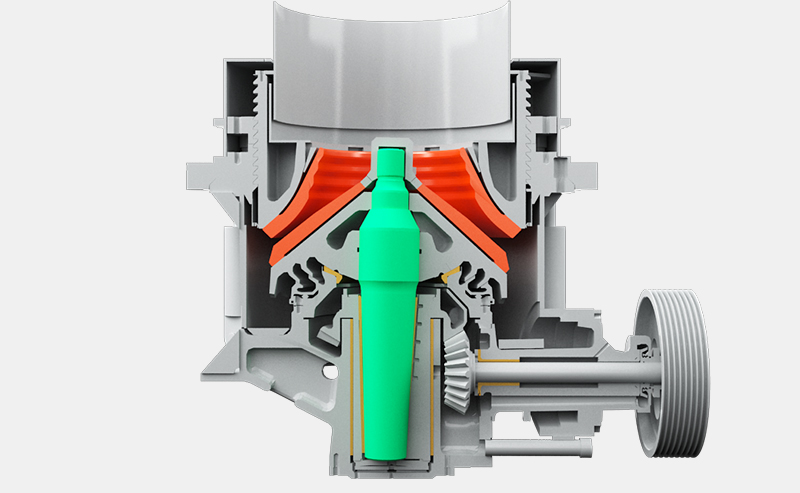

  • Bearing design

    The use of tin bronze bushing sliding bearing design enables it to have super high load capacity under high dust and high impact environment.

  • Liner

    The installation and replacement of the lining does not need to pour the lining board glue, which more saves time, lower cost and more reliable to fixing.

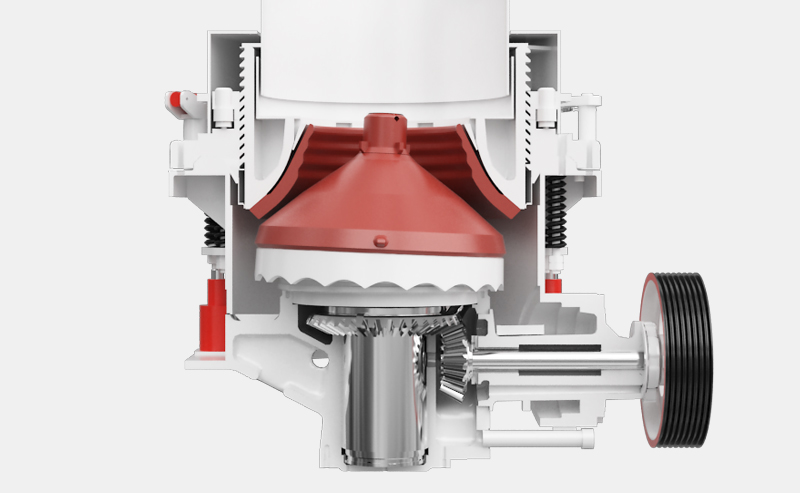

  • Gear

    It adopts spiral bevel gear design, high load capacity, stable transmission and low noise.

Technical Specifications

Model Cavities Feeding size(mm) Maximum Feeding size(mm) Minimum Discharging Size(mm) Capacity(t/h) Power(kw)
HPM200 C1 185 145 22 160~250 160
C2 125 100 18 145~250
C3 95 75 14 120~250
F1 76 60 12 108~210
F2 54 45 10 81~210
HPM300 C1 235 190 26 230~445 220
C2 211 170 20 200~445
C3 150 120 16 180~445
C4 107 85 14 160~220
F1 53 40 12 140~220
HPM400 C1 299 240 35 270~630 315
C2 252 200 25 252~630
C3 198 160 25 243~630
C4 111 190 18 210~630
F1 92 75 15 162~370
F2 52 40 13 126~370
HPM500 C1 335 270 38 365~790 400
C2 286 230 30 328~790
C3 204 165 22 280~790
F1 133 105 20 202~450
F2 95 75 16 175~450
F3 52 42 8 158~450
HPM650 C1 328 262 30 386~790 500
C2 279 225 25 348~790
C3 196 175 20 300~790
F1 106 85 13 280~530
F2 52 42 9 220~530
HPM800 C1 353 280 38 616~1100 630
C2 297 240 38 522~1100
C3 267 214 25 495~1100
C4 219 175 22 380~1100
F1 155 125 20 328~730
F2 92 75 16 270~730

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cavities Maximum Feeding size(mm) Capacity(t/h)
HPM200 C1 145 160~250
C2 100 145~250
C3 75 120~250
F1 60 108~210
F2 45 81~210
HPM300 C1 190 230~445
C2 170 200~445
C3 120 180~445
C4 85 160~220
F1 40 140~220
HPM400 C1 240 270~630
C2 200 252~630
C3 160 243~630
C4 190 210~630
F1 75 162~370
F2 40 126~370
HPM500 C1 270 365~790
C2 230 328~790
C3 165 280~790
F1 105 202~450
F2 75 175~450
F3 42 158~450
HPM650 C1 262 386~790
C2 225 348~790
C3 175 300~790
F1 85 280~530
F2 42 220~530
HPM800 C1 280 616~1100
C2 240 522~1100
C3 214 495~1100
C4 175 380~1100
F1 125 328~730
F2 75 270~730

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
