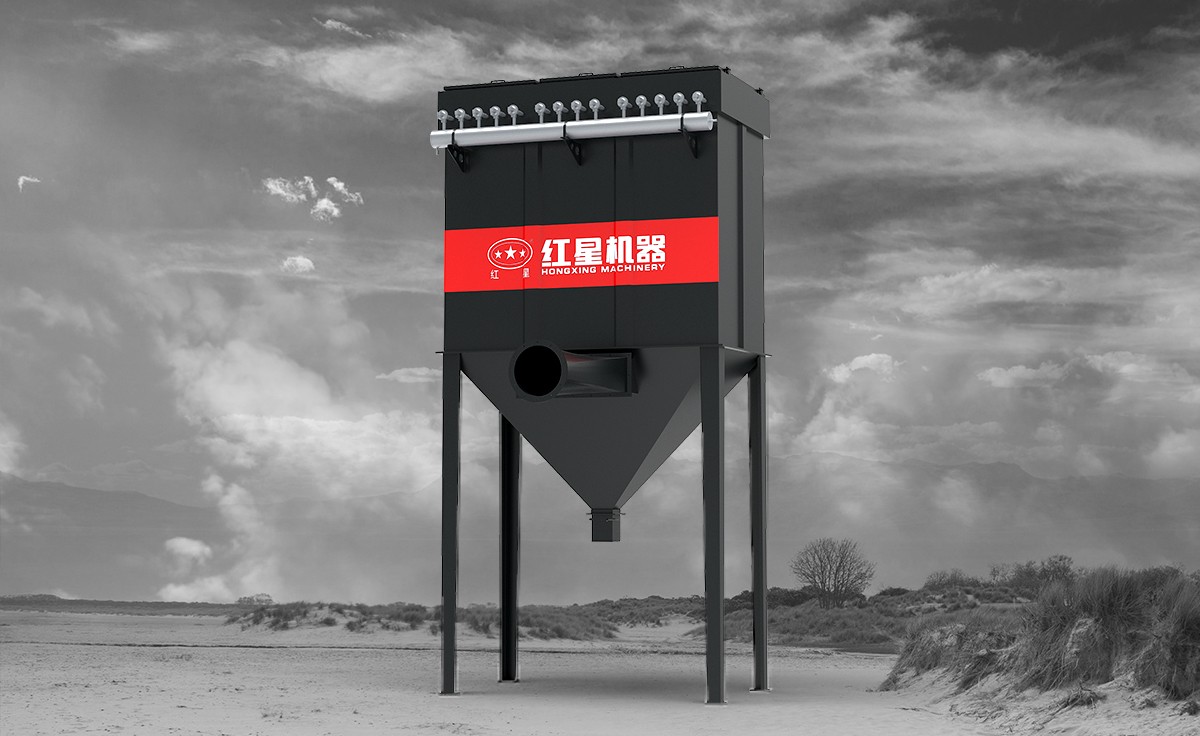

DMC Series Single Pulse Dust Collector

DMC single pulse dust remover adopts the pulse blowing dust removal method, which is characterized by high dust removal effect, appropriate air volume, long filter bag life, small maintenance workload, and safe and reliable operation.

It is suitable for dust removal and purification of non fibrous industrial dust and material recovery in various industrial and mining enterprises.

Contact Us e-mail

Advantages

  • Line spraying dust removal

  • Good ash removal effect

  • Long service life of filter bag

  • Safety and reliable operation

Technical Specifications

Model Filter area
(m²)		 Processing air
volume
(m³/h)		 Filtered air
speed
(m/min)		 Fan Power
(kW)		 Number of
filter bags		 Inlet dust
concentration
(g/Nm³)
DMC24 18 864~2160 0.8~2 1.5 24 <200
DMC36 27 1296~3240 0.8~2 3 36 <200
DMC48 36 1728~4320 0.8~2 4 48 <200
DMC64 48 2304~5760 0.8~2 4 64 <200
DMC80 60 2880~7200 0.8~2 5.5 80 <200
DMC96 72 3456~8640 0.8~2 7.5 96 <200
DMC112 84 4032~10080 0.8~2 7.5 112 <200
DMC128 96 4608~11520 0.8~2 7.5 128 <200
DMC150 112.5 5400~13500 0.8~2 15 150 <200
DMC180 135 6480~16200 0.8~2 8.5 180 <200
DMC220 165 7920~19800 0.8~2 30 220 <200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Filter area
(m²)		 Processing air
volume
(m³/h)		 Filtered air
speed
(m/min)		 Fan Power
(kW)
DMC24 18 864~2160 0.8~2 1.5
DMC36 27 1296~3240 0.8~2 3
DMC48 36 1728~4320 0.8~2 4
DMC64 48 2304~5760 0.8~2 4
DMC80 60 2880~7200 0.8~2 5.5
DMC96 72 3456~8640 0.8~2 7.5
DMC112 84 4032~10080 0.8~2 7.5
DMC128 96 4608~11520 0.8~2 7.5
DMC150 112.5 5400~13500 0.8~2 15
DMC180 135 6480~16200 0.8~2 8.5
DMC220 165 7920~19800 0.8~2 30

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
